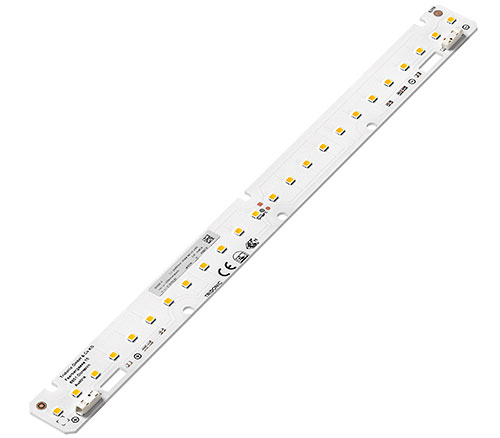

New generation of LED modules

With the fifth generation of the 24 mm LLE ADVANCED modules, Tridonic sets new standards in terms of the efficacy and quality of linear LED modules. This is down to a rigorous procurement and production process in which only premium raw materials are used. In addition, chip selection is based on strict optical criteria as well as comprehensive tests which far exceed the requirements of the usual standards. The efficacy of the LLE ADV5 modules has thus been boosted to 200 lumen per watt in the high-efficacy portfolio and to 190 lumen per watt in the standard portfolio.



Greater efficacy with a CRI > 90 and more flexible use

The efficacy of modules with a high colour rendering index (CRI) > 90 has been improved even further compared to the previous version. All modules are available with a CRI > 80 and a CRI > 90, both as SELV and non-SELV variants. There is even greater flexibility when using the modules now that it is also possible to combine SELV variants in different lengths, with the light remaining completely homogeneous. Lengths and drill holes according to ZHAGA requirements also allow the modules to be easily integrated into existing designs.


Wide range of applications

The new LLE modules are compatible with existing accessories for linear luminaires, such as ACL linear lenses with various beam characteristics, mounting clips, end caps and covers. With the appropriate covers, they can even be used straight away as luminaires. When combined with the appropriate LED driver (fixed output or dimmable version), a highly efficient system is created for a wide range of applications. The LLE modules are available in different lengths and with colour temperatures of 2,700 K, 3,000 K, 3,500 K, 4,000 K, 5,000 K and 6,500 K, whereby the respective colour temperature remains constant even when dimmed. The modules have a service life of 72,000 hours and come with a five-year manufacturer guarantee.


Product pages:
Module LLE 24 mm 650 lm HV ADV5
Module LLE 24 mm 1250 lm HV ADV5
Module LLE 24 mm 2000 lm HV ADV5
