EM BASIC, 230 – 240 V 50/60 Hz

Ausführung BASIC

  • Emergency lighting supply unit for manual testing
  • For linear and compact fluorescent lamps
  • Small dimensions (28 x 39 mm cross-section)
  • 5년 보증
  • 1 or 3 h rated duration
  • Compatible with all electronic ballasts (dimmable and non-dimmable)
  • Can also be used in combination with conventional magnetic ballasts
  • 5-pole technology: 4-pole lamp changeover and delayed power switching for the ballast
  • Optimised AC output voltage for TC-DD and TC-L lamps
  • Optimised DC output voltage for T8 lamps
  • Cathode heating adapted for compact lamps
  • Switchover relay with high-current contacts
  • IDC (insulation displacement connection)
  • Green charge status display LED
  • Checking the emergency lighting function by interrupting the unswitched phase
  • Optional test switch
  • Deep discharge protection
  • Battery connection, short-circuit protected (not reversible)
  • Polarity reversal protection for battery
  • High-temperature cells
  • NiCd batteries
  • D cells
  • Blade terminals for simple connection
  • 4-year design life
  • 1-year guarantee
  • For battery compatibility refer to data sheet
Autoscroll for tables
Ordering data
유형 (1) (2) 품목 번호 Number of cells 패키징, 카턴 패키징, 팰릿 개당 무게
Rated operating time 3 h
EM 33A BASIC 89818556 3 25 pc(s). 750 pc(s). 0,337
EM 33B BASIC 89818655 3 25 pc(s). 750 pc(s). 0,311
EM 34B BASIC 89818662 4 25 pc(s). 750 pc(s). 0,324
EM 35A BASIC 89818581 5 25 pc(s). 750 pc(s). 0,337
EM 35B BASIC 89818667 5 25 pc(s). 750 pc(s). 0,311
EM 35C BASIC 89800001 5 25 pc(s). 750 pc(s). 0,315
EM 36C BASIC 89800108 6 25 pc(s). 750 pc(s). 0,337
Rated operating time 1 h
EM 14B BASIC 89899611 4 25 pc(s). 750 pc(s). 0,337
Lamp type:
T5
T8
TC-DEL
Approval marks:
EAC
RCM
CE
ENEC
RoHs
Technical data
정격 공급 전압 230 – 240 V
주 전원 주파수 50 / 60 Hz
Mains current 0,04
Rated power 7 W
Battery charging time 24 h
Discharge current 1 h Cs cells 1,1 A
Discharge current 1 h D cells 2,25 A
Discharge current 3 h 1,1
Charge current Cs cells 120 mA
Charge current D cells 210 mA
누설 전류(PE) 0,5 mA
주위 온도 ta 0 ... +50 °C
최대 케이싱 온도 tc 75 °C
Mains voltage changeover threshold According to EN 60598-2-22
Min. lamp starting temperature (emergency mode) 0
보호 유형 IP20
보호 등급 I

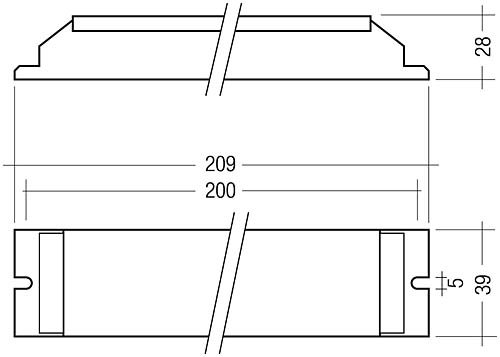

치수 L x W x H 209 x 39 x 28 mm
Autoscroll for tables
Document      Size       Date
Download selected files
 Download selected files
EM_BASIC_en.pdf
Data sheet 		1.18 MB 03/04/2019
TA207.pdf
Declaration of conformity 		80 KB 03/04/2012
Emergency_Lighting_Overview_EN.pdf
LED emergency lighting system
Solutions for emergency lighting 		1.99 MB 20/03/2018
