Two drivers in one housing

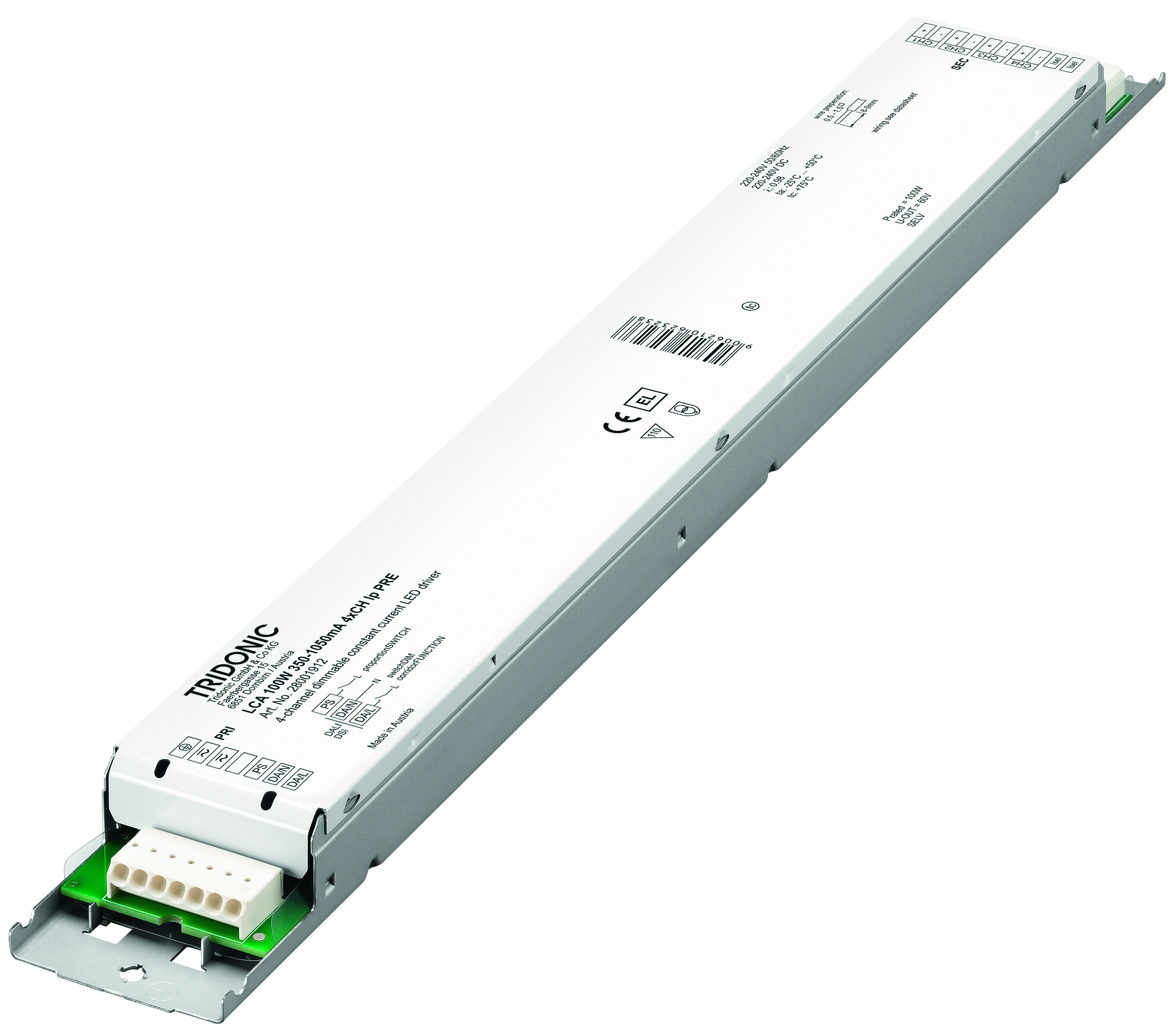

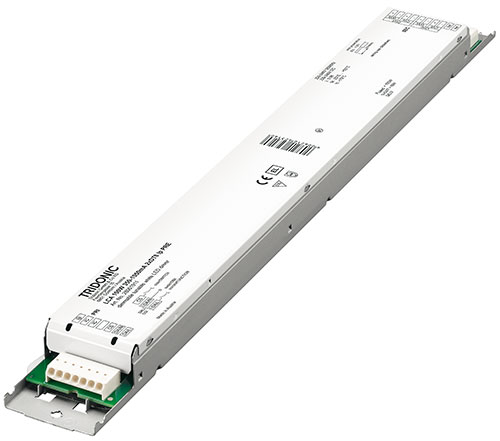

The LCA 50 W 350–1050 mA 2xCH lp PRE LED driver has an output of 50 W and accommodates two channels in its housing. For each channel the output currents can be set separately between 350 and 1,050 mA, either via I-Select 2 plugs or DALI. The integrated one4all interface supports DALI DT6, DSI, switchDIM and corridorFUNCTION V2. The driver is also equipped with a proportionSWITCH interface. While preset dimming levels for the connected luminaires can be easily selected with a pushbutton via switchDIM, different predefined dimming levels are available for each channel via proportionSWITCH. Dimming in this case has a contrary effect: increasing the brightness on one channel reduces the brightness on the other channel. This means, for example, that different brightness levels can be set for direct and indirect light in pendant and floor-standing luminaire or simple Tunable White applications can be realised.


High efficiency, low standby losses

Measuring only 350 x 30 x 21 mm, the driver can be easily integrated in existing or new luminaires. It achieves an efficiency of up to 90 percent and has a wide dimming range of 1 to 100 percent. Thanks to low standby losses: of less than 0.25 W, the driver is an impressive energy saver. It is suitable for luminaires of protection classes I and II and is also designed for emergency operation. With a life of up to 100,000 hours the driver is also extremely durable. The manufacturer offers a 5-year guarantee.
