LED systems for area light

The new EM converterLED units are designed to operate the LED modules without additional emergency lighting LEDs. They are used in combination with non-dimmable and dimmable converters. They are available in SELV (Safety Extra Low Voltage) and Non-SELV versions and also with various functionalities from the manually tested unit (BASIC) to units with automatic self-testing (ST) and centrally monitored DALI emergency lighting systems (PRO). Depending on the standards and specifications, an operating time of one, two or three hours is required – the Tridonic product range meets all these requirements.

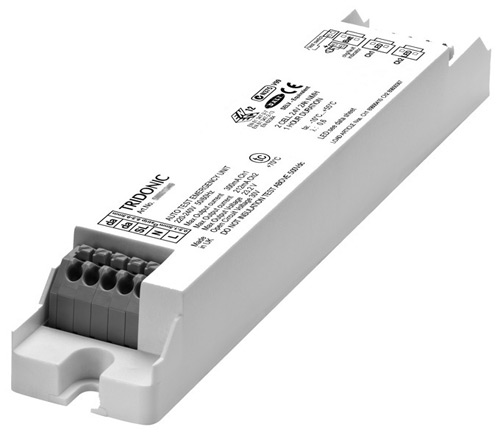

The EM powerLED 1–4 W units, which are also available in BASIC, ST and PRO versions, are designed for emergency lighting provided by LED modules with additional emergency lighting LEDs.


Square and linear

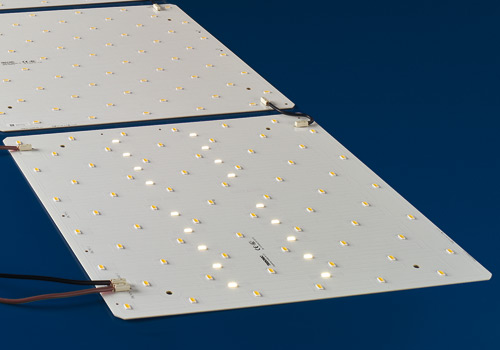

TALEXXengine Stark QLE and LLE offer a system luminous efficacy of up to 100 lm/W. Dimensions of 270 mm x 270 mm (QLE) and 35 mm x 270 mm (LLE) make these 6 mm thin LED modules ideal for individual lighting solutions. They can be used as individual modules or in various combinations. The square version is perfect for area luminaires and long-run luminaires, and the linear version is ideal for creating clear lines of light. All versions will fit a wide variety of lighting systems, from diffusers to louvre luminaires.


Different white tones

The LED engines are available at present with two different modules with colour temperatures of 3,000 K and 4,000 K. The CRI is greater than 80 in each case, offering very good colour rendering. At a colour temperature of 3,000 K they achieve a brightness of 1,190 lm at an efficiency of 93 lm/W; at a colour temperature of 4,000 K the figures are 1,250 lm and 100 lm/W. Each module contains 66 LEDs (not counting emergency lighting LEDs) arranged so that they produce a pleasant uniform light. The principal applications are offices, foyers, educational establishments and factories.


Simple wiring and mounting

The modules can be connected to one another and to the appropriate converters via special terminals and cable penetrations and returns. Four to six modules can be operated in series with just one converter. The converters, either for luminaire installation or surface mounting, are specially matched to the LED modules. There are versions available with or without integrated interfaces (DSI signal, switchDIM or DALI) and with corridorFUNCTION.
