Space-saving combined operating unit

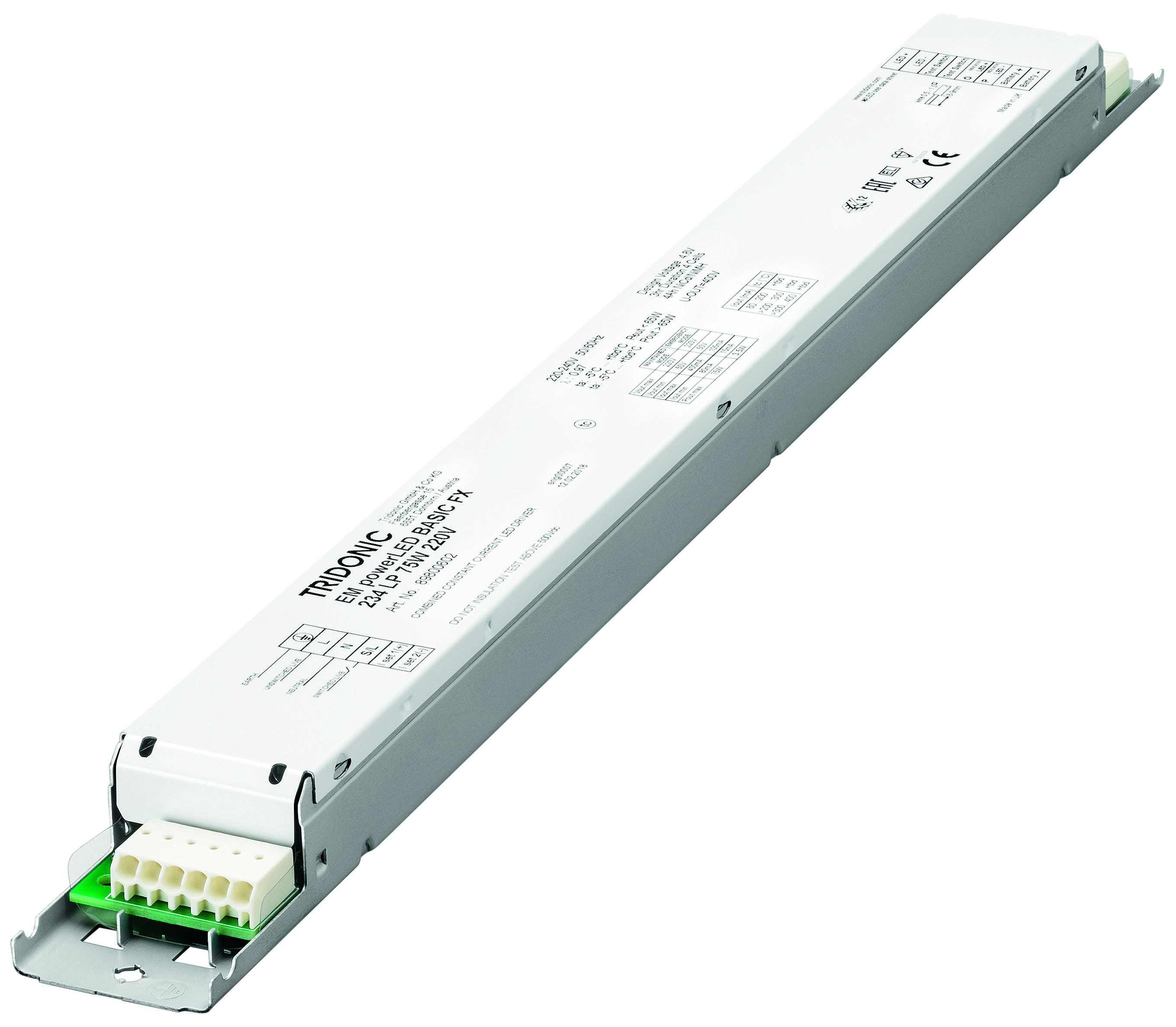

EM powerLED BASIC 75 W linear contains a fixed-output LED driver for mains operation and an emergency lighting unit with a manual test function. It is intended for installation in linear and low profile: luminaires with single-battery emergency lighting systems and, as a 2-in-1 unit, offers a simple space-saving solution that is easy to implement and requires minimal wiring.


Output power up to 75 W

In mains operation the 2-in-1 unit supplies LED modules with voltages from 50 to 220 V and offers outputs of 6 W to 75 W. The output current can be set in the working range of 80 to 400 mA via i-select 2 or ready2mains. This flexible setting option and the wide power range open up a broad spectrum of applications in numerous different luminaires.

In emergency mode the integrated emergency lighting converter provides outputs of 2.5 to 4.5 W, depending on the version and therefore the number of NiCd or NiMH batteries. The rated operating time is one or three hours. An optional test button is available for manually testing the integrated emergency lighting converter. The expected life of the batteries is four years. The manufacturer provides a guarantee of one year. For the life of the LED driver of 50,000 hours the manufacturer provides a guarantee of five years.
